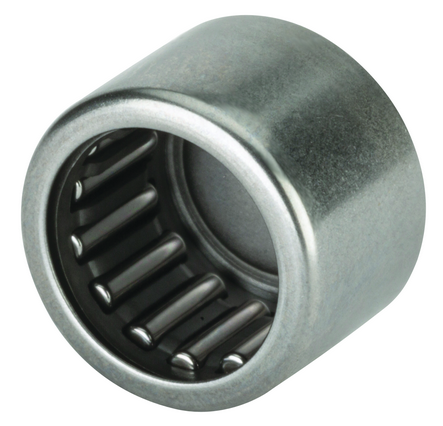

Drawn cup needle roller bearings BK0912 with closed end

Bore diameter:0.354 in
Outside diameter:0.512 in
Width:0.472 in

Drawn cup needle roller bearing BK0912 with a closed end

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to the large number of rollers, the bearings have a high load carrying capacity and stiffness. The closed end makes them suitable for bearing arrangements where they are situated at the end of a shaft.

  • High radial load carrying capacity

  • Accommodate small axial guidance forces

  • High stiffness

  • Very low cross-sectional height



Bore diameter0.354 in
Outside diameter0.512 in
Width0.472 in
Basic dynamic load rating1 151 lbf
Basic static load rating1 439 lbf
Reference speed18 000 r/min
Limiting speed20 000 r/min
Bearing partBearing without inner ring
Number of rows1
Outer ring typeDrawn cup with one closed end
Aligning featureWithout
CageSheet steel
Number of flanges, outer ring2
Tolerance classNormal
Material, bearingBearing steel
Relubrication featureWithout
