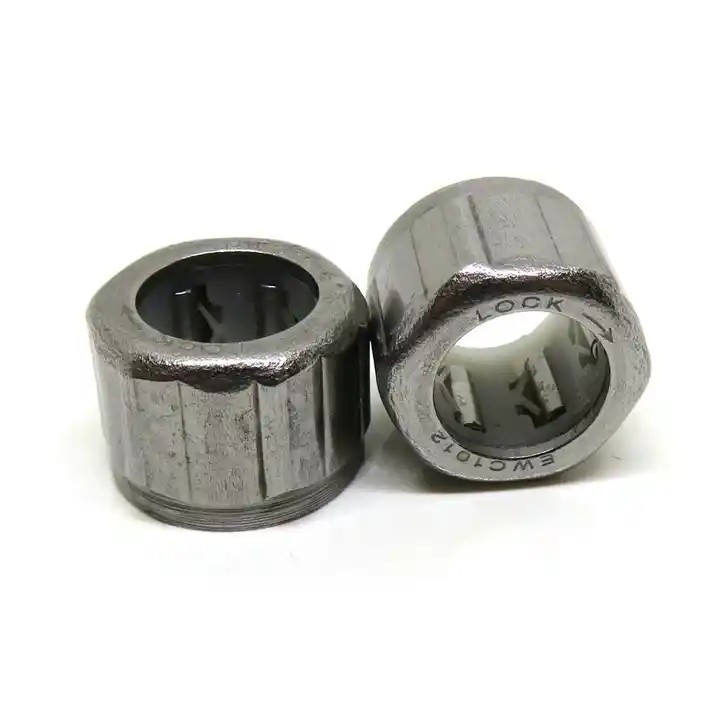

EWC1012C One Way Needle Roller Bearing Auto Clutches

One Way EWC Series Needle Roller Bearing Auto Clutches

The needles in these bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads. The miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

EWC: Plastic Spring 1WC: Metal Spring
