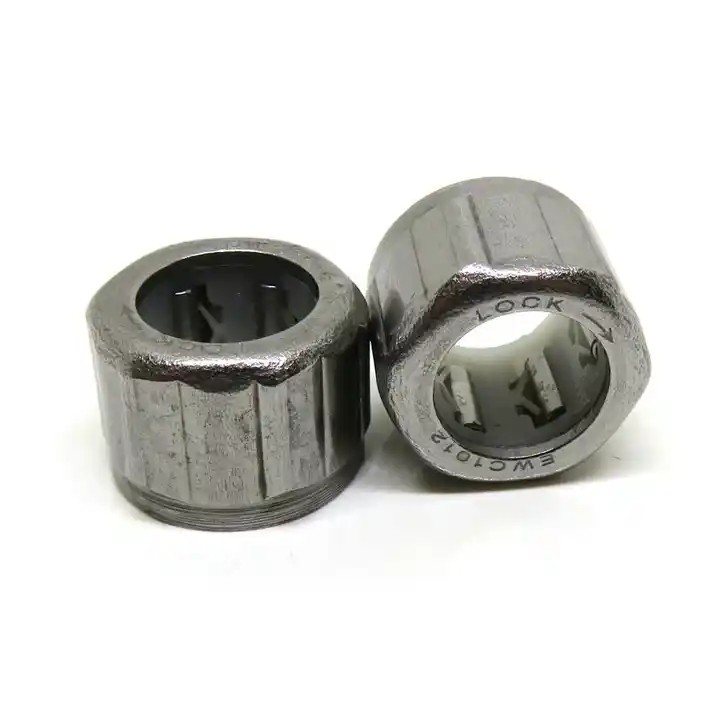

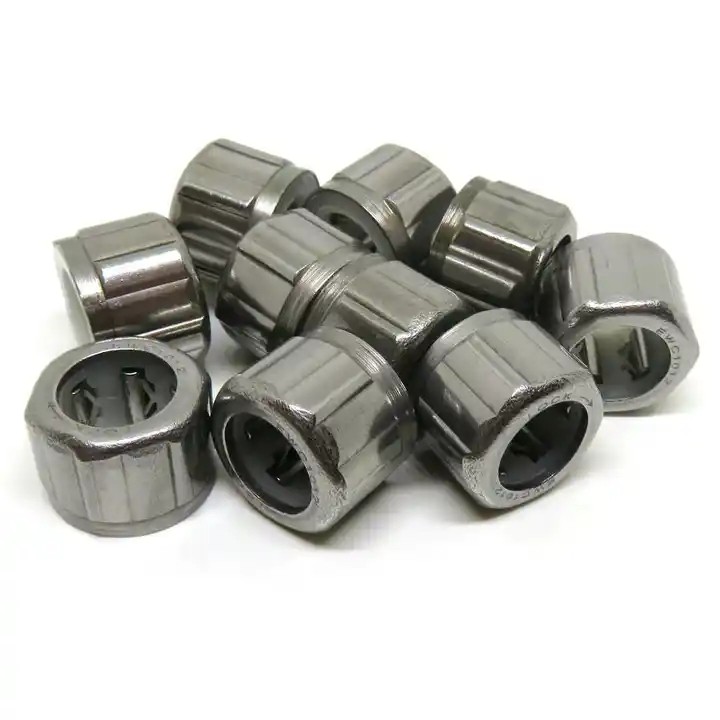

1WC0815 One Way Needle Roller Bearing Auto Clutches

1WC0815
Size: 8X14.2X14.5mm
EWC: Plastic Spring
1WC: Metal Spring
Heavy Load: EWC...C
Light Load: EWC...A
Heavy Load: 1WC

One Way EWC Series Needle Roller Bearing Auto Clutches

The needles in these bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads. The miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

ewc w.png

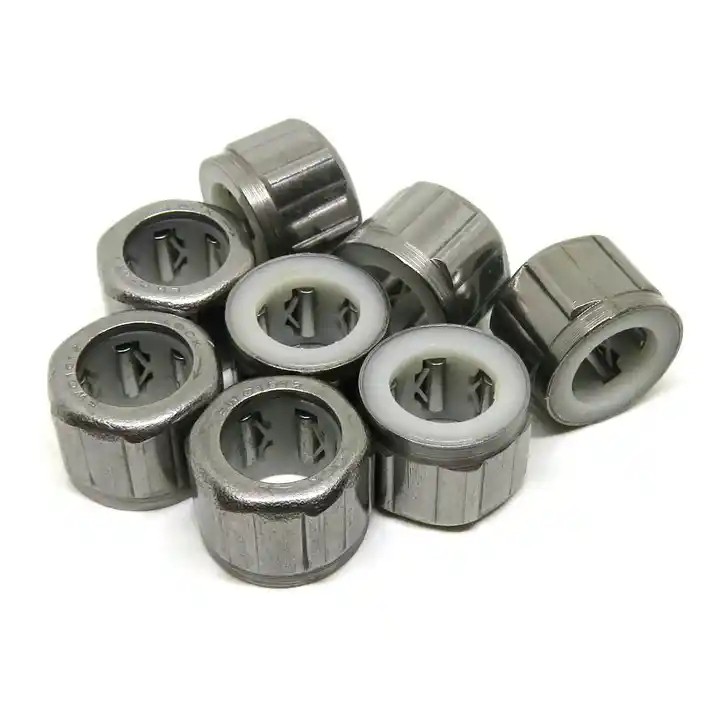

EWC: Plastic Spring 1WC: Metal Spring

Part Number

1WC0815

System of Measurement

Metric

Bearing Type

Needle

Construction

Single Row

Seal Type

Open

Series

1WC Series

Bore Dia

8 mm

Outer Dia

14.2 mm

Width

14.5 mm

Ring Material

Steel

Cage Material

Steel

Needle Material

Steel

Spring Material

Steel

Torque Capacity

2.65 Nm

Lubrication

Lubricated

Shaft Mount Type

Press Fit

Temperature Range

-30° to 110 °C

RoHS

Compliant

Weight

8 g
