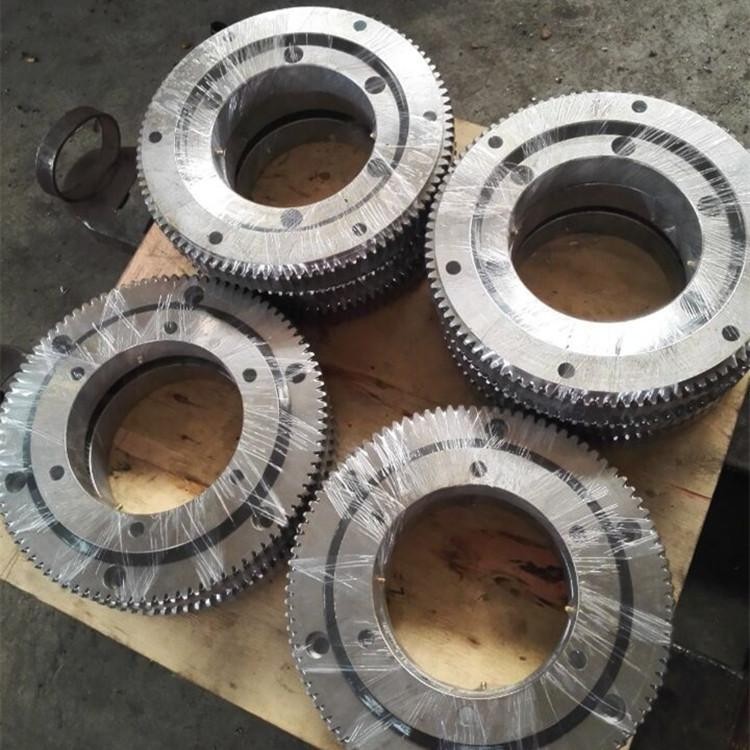

MTE-145X Slewing Ring Bearing Turntable Bearing for Lift-assist devices

Part Number MTE-145X
Moment Load Rating (Crm) 30600ft-lbs | 136.607KN
Bearing Types Slewing Ring Bearing

MTE-145X Slewing Ring Bearing Turntable Bearing for Lift-assist devices

MT Series slewing ring bearings have a rectangular cross-section and range in size from 4 – 47 inches OD (100 – 1200 mm). They provide optimal economy and capacity for a given envelope dimension.

Design Features

The internal configuration consists of deep groove gothic arch raceways and maximum ball complement. This results in a four-point contact design which provides exceptional moment, thrust, and radial load capacities. Integral face riding seals for the larger sizes and non-contact shields for the smaller assist in the exclusion of contaminants. These features make them an ideal choice for a

wide range of applications from light to heavy duty.

MT Series bearings are offered in non-geared (MTO) and externally geared (MTE) configurations. The gears are Fellows Stub Involute up to the MTE-324 size and Stub Involute for larger sizes, all manufactured to AGMA Class Q6 quality. Contact Kaydon for tooth backlash allowance.

Part numbers ending in a “T” suffix have threaded mounting holes. Thread depths are a minimum of 1.5 times the nominal hole size diameter indicated.Part numbers ending in an "X" suffix provide additional load capacity.

Applications

MT Series bearings have been used successfully in a wide range of applications from light to heavy duty.

The smaller sizes are well suited for:

❚ Manipulators❚ Jib cranes❚ Lift-assist devices❚ Work positioners

Larger sizes are well suited for:

❚ Truck-mounted cranes❚ Aerial lifts❚ Hoists❚ Small wind turbines❚ Non-precision positioning tables

Drawings:

MT SERIES.png

Specifications:

Part NumberMTE-145T
Moment Load Rating (Crm)26000ft-lbs | 116.071KN
Bearing TypesSlewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do)12.286" | 312.06mm
Inside Diameter of Inner Ring (di)5.709" | 145.01mm
Height of Overall Bearing Assembly (H)1.968" | 49.99mm
Height of Inner Ring (Hi)/Height of Outer Ring (Ho)1.732" | 43.99mm
Approximate Weight (lbs)38lbs | 17.236KG
Mounting Holes
Bolt Circle in Outer Ring (Lo)10.63" | 270mm
Number Holes in Outer Ring (no)16
Size of Hole in Outer Ring (Bo)0.594"
Bolt Circle in Inner Ring (Li)6.89" | 175.01mm
Number Holes in Inner Ring (ni)16
Size of Hole in Inner Ring (Bi)0.594"
Gear Data
Pressure Angle of Gear Teeth (α)20 º
Tooth formFS
Pitch diameter of gear(D2)12" | 304.8mm
Diametral pitch(Pd)5/7
Number of gear teeth(z2)60
Face width of gear teethαb2)1.732
Mating Pinions39201001
