d - Bore
1.1417 in
28.999 mm
D - Cup Outer Diameter
1.9800 in
50.292 mm
B - Cone Width
0.5800 in
14.732 mm
C - Cup Width
0.4200 in
10.668 mm
T - Bearing Width
0.5600 in
14.224 mm

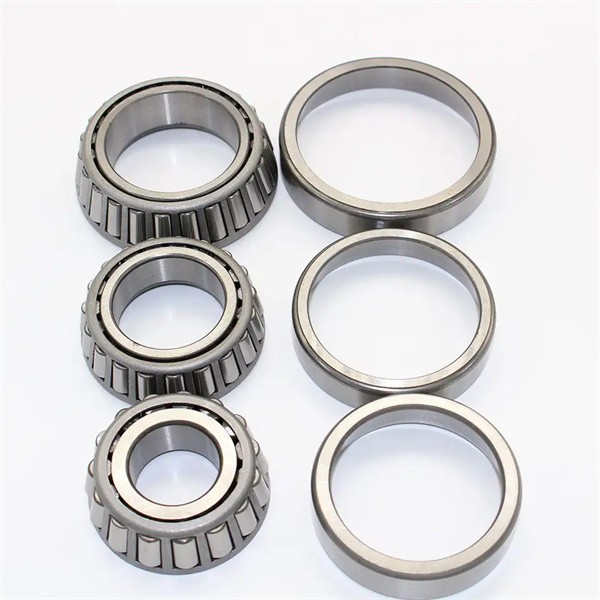

L45449/L45410 Inch Tapered Bearing, Cone and Cup, complete assembly
| Series | L45400 |
| Cone Part Number | L45449 |
| Cup Part Number | L45410 |
| Design Unit | Inch |
| Cage Material | Stamped Steel |
| d - Bore | 1.1417 in28.999 mm |
| D - Cup Outer Diameter | 1.9800 in50.292 mm |
| B - Cone Width | 0.5800 in14.732 mm |
| C - Cup Width | 0.4200 in10.668 mm |
| T - Bearing Width | 0.5600 in14.224 mm |
| R - Cone Backface "To Clear" Radius1 | 0.14 in3.560 mm |
| r - Cup Backface "To Clear" Radius2 | 0.05 in1.27 mm |
| da - Cone Frontface Backing Diameter | 1.32 in33.5 mm |
| db - Cone Backface Backing Diameter | 1.57 in40 mm |
| Da - Cup Frontface Backing Diameter | 1.91 in48.51 mm |
| Db - Cup Backface Backing Diameter | 1.75 in44.45 mm |
| Ab - Cage-Cone Frontface Clearance | 0.06 in1.5 mm |
| Aa - Cage-Cone Backface Clearance | 0 in0 mm |
| a - Effective Center Location3 | -0.13 in-3.3 mm |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 2070 lbf9200 N |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 7980 lbf35500 N |
| C0 - Static Radial Rating | 8130 lbf36200 N |
| Ca90- Dynamic Thrust Rating (90 million revolutions)6 | 1310 lbf5820 N |
| K - Factor7 | 1.58 |
| e - ISO Factor8 | 0.37 |
| Y - ISO Factor9 | 1.62 |
| G1 - Heat Generation Factor (Roller-Raceway) | 10.8 |
| G2 - Heat Generation Factor (Rib-Roller End) | 12.4 |
| Cg - Geometry Factor10 | 0.0559 |
