Size range:
ID 25.400 mm to 1200.150 mm (1.0000 in. to 47.2500 in.)
OD 30.480 mm to 2460.000 mm (1.2000 in. to 96.8504 in.)
Applications:
Heavy-duty gear drives
Various industrial configurations

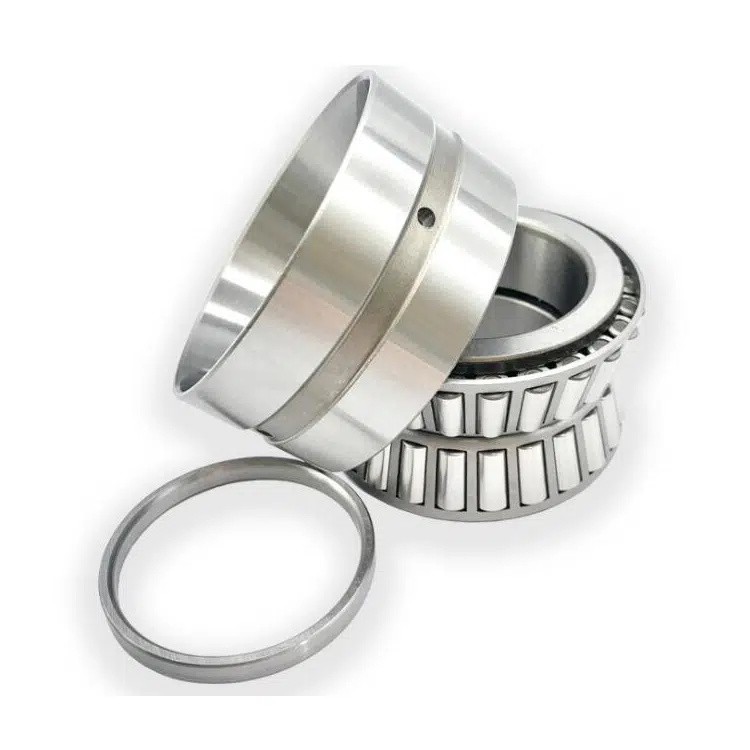

TDO design bearings have a double row outer ring and two single inner rings that usually have an intermediate ring between them. Their roller sets are arranged back-to-back (O-arrangement), which enables them to accommodate tilting moments. Design variants include features such as a helical groove in the bore or lubrication grooves in the side faces of the bearing rings.
Features:
High radial load carrying capacity
Accommodate axial loads in both directions
Relatively high stiffness
Accommodate tilting moments
Many variants, including a helical groove in the bore or lubrication grooves in the side faces of the bearing rings
Ready to mount
Specifications:
Dimensions | ||
d | 228.6 mm | Bore diameter |
D | 488.95 mm | Outside diameter |
T | 254 mm | Total width |
C | 152.4 mm | Width of outer ring |
d1 | ≈253 mm | Diameter of shaft abutment |
d1 | ≈400 mm | Diameter of shaft abutment |
D1 | ≈0 mm | Diameter of housing abutment |
D1 | ≈456 mm | Diameter of housing abutment |
r1,2 | min.6.4 mm | Chamfer dimension of inner ring |
r3,4 | min.1.5 mm | Chamfer dimension of outer ring |
r3,4 | min.1.5 mm | Chamfer dimension of outer ring |
a | 326.405 mm | Distance between pressure points |
Calculation data | ||
Basic dynamic load rating | C | 3 143 kN |
Basic static load rating | C0 | 4 500 kN |
Fatigue load limit | Pu | 390 kN |
Limiting value | e | 0.94 |
Calculation factor | Y1 | 0.72 |
Calculation factor | Y2 | 1.07 |
Calculation factor | Y0 | 0.7 |
Comparative radial load rating | CF | 735 kN |
Comparative axial load rating | CFa | 669 kN |
Thrust factor | K | 0.62 |
Mass | 196 kg |
